HSQ Resist - New Formulation!

EM Resist provides HSQ resist in both liquid and powder form. A high resolution negative tone electron beam resist with excellent etch properties.

H-SiOx (HSQ) is a high purity, silsesquioxane-based semiconductor grade polymer applicable as a negative tone resist for electron beam patterns, EUV, nanoimprint lithography and Step and Flash Imprint Lithography (SFIL). It is readily soluble in non-polar organic solvents like methyl isobutylketone (MIBK), methyl siloxane and toluene for thin-film fabrication. Depending on the film thickness, a dense pattern with sub-10 nm half-pitch can be achieved.

HSQ provided by EM Resist will replace any current product you might already use, like-for-like. If you would like to discuss about moving over to EM Resist for your HSQ requirements, please get in touch.

Both solution and powder kits can be shipped internationally.


Quotation Request

View in Shop

Share

HSQ resist is a high resolution negative tone resist that has excellent etch resistance. Lithography can be performed with E-beam, EUV or SFIL.

We offer HSQ pre-diluted and filtered in MIBK, however we also have the option of a ‘dry-kit’. This consists of HSQ powder in a vial, a measure of MIBK and a syringe and syringe filter. This enables the user to perform custom dilutions as well as extend the shelf-life of the resist.

Specifications

  • Direct write and thin uniform films
  • High resolution (<10 nm features)
  • Excellent line edge roughness
  • Good dry etch resistance
  • Available in powder form to meet every need
  •  Improved shelf life of liquid form and very long shelf life at RT in powder form
  • Available in concentrations from 1% to 40%

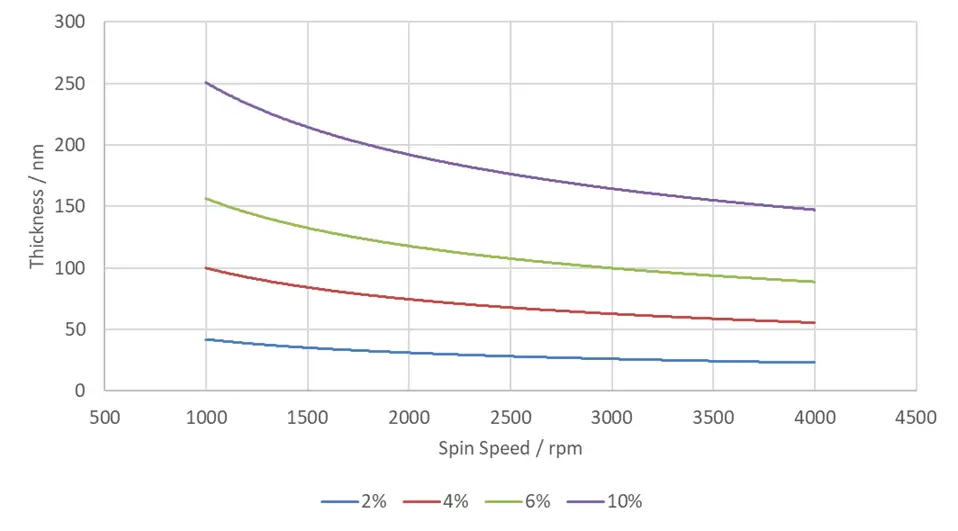

Thin HSQ Spin Curves
HSQ 1%-6% Spin Curves


Thick HSQ Spin Curves
HSQ 10% - 20% Spin Curves
